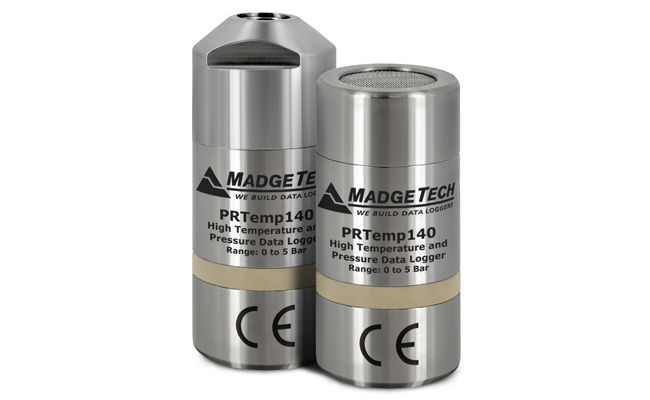

PRTemp140 Data Logger
The PRTemp140 is a submersible, pressure and high temperature data logger. Includes ISO17025 accredited calibration certificate.
Key Features:
- Submersible
- 2.5 Inches Tall
- Available in Flush or NPT Pressure Port Top
Product Description
Specification
Features. Benefits & Application
The PRTemp140 is a pressure and high temperature data logger all in one, created specifically for use in autoclave validation, mapping studies and pressurized processes. Featuring the familiar body style of the 140 series of data loggers and made of rugged stainless steel, this dual purpose device is less than 2.5 inches in length, allowing it to fit discretely inside small spaces.
The PRTemp140 data logger downloads temperature and pressure data simultaneously and displays the combined results in a single graph, simplifying data collection and analysis and eliminating unnecessary steps for the user.
This data logger is able to measure and record temperatures from -20 °C to 140 °C (-4 °F to +284 °F), and absolute pressure from 0 bar to 5 bar, accommodating a wide range of applications even in the harshest conditions.
The memory capacity on the PRTemp140 stores up to 32,700 time and date stamped readings and will retain data even if the battery becomes discharged.
The PRTemp140 utilizes the latest MadgeTech data logger software, making the entire process from starting the device to analyzing data, efficient and easy for the user. Downloaded data can be viewed in various formats including graphic and tabular and can also be exported to Excel® for further analysis and calculations.
